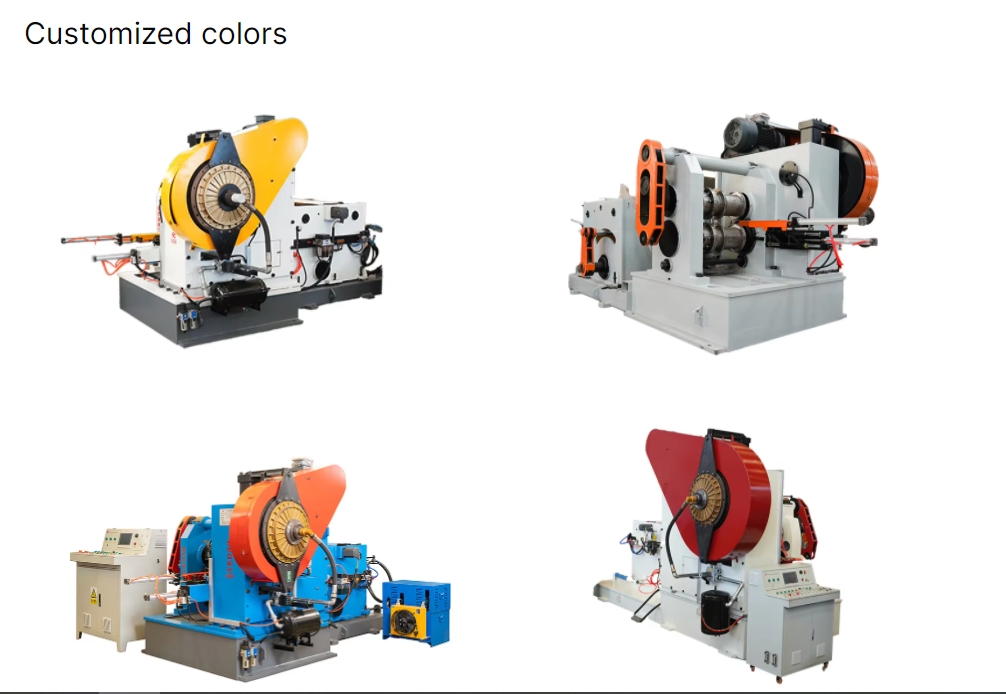

- Commodity name: Automatic feeder Forging rolling machine Rolling machine cross wedge rolling machine
Product Introduction
Roll forging is a type of rotary forging, which belongs to spin forming. The upper and lower rollers rotate synchronously in the
opposite direction, driving the fan-shaped die to rotate inward, and forming the billet through cavity's extrusion.
The fan-shaped die is the working part, and the roller is the bearing part. Different workpieces can be roll forged by changing
the die cavity.
Q:What is your company's main business?
A:We are a professional manufacturer of forging and pressing equipment, with strong technical strength and rich production experience, and our products are exported to all over the world. We are committed to providing our customers with high quality and cost-effective forging and pressing equipment to meet their different needs.Q:What are the advantages of your forging machinery?
A:We are a pioneer enterprise in China's roll forging machine industry. Over the past 30 years, we have provided thousands of machines to the world and have rich experience.Q:How is your pre-sales service?
A:We provide free consultation, equipment selection, quotation and other services to help customers understand the products and choose the right equipment.Q:How is your after-sales service?
A:We provide equipment commissioning, maintenance, technical training and other services to ensure the long term operation of equipment.
Q:How to choose the right forging press?
A:The following factors need to be considered when choosing the right forging press:
Size and shape of the forgings
The material of the forgings
Required forging force
Production efficiency
Budget
We recommend that you consult our experts to help you choose the right forging press. -
Roll Forging Machine Unit ZGD-260 ZGD-300 ZGD-370 ZGD-460 ZGD-560 ZGD-680 ZGD-1000 ZGD-1250 Outer diameter of roll forging die mm 260 300 368 454 560 680 990 1250 Diameter of roller mm 165 200 240 300 360 440 600 800 Effective width of roller/die mm 320 390 500 550 610 900 1250 1400 RPM of roller r/min 80 80 66 58 52 40 10 8 Length of forged part max. mm ≤260 ≤350 ≤500 ≤600 ≤700 ≤800 ≤1500 ≤1850 Adjustment of gap between center of rollers mm 260±6 350±8 368±8 458±8 560±10 680±10 990±12.5 1250±15 Main motor power kW 15 18.5 22 30 75 132 250 315 Diameter of billet mm ≤40 ≤50 ≤65 ≤80 ≤110 ≤140 ≤170 ≤200 Longitudinal stroke of manipulator max. mm 330 390 490 630 758 890 / / Horizontal stroke of manipulator max. mm 330 400 520 560 620 910 1250 1450 Adjustment of longitudinal position mm 150 150 200 200 300 300 Customized Customized Adjustability of vertical & horizontal / Adjustable Adjustable Adjustable Adjustable Adjustable Adjustable Adjustable Adjustable Single horizontal distance mm 60-90 60-90 70-100 70-130 80-140 90-160 Adjustable Adjustable Rotation angle of manipulator ° 90 90 90 90 90 90 90 90 Normal rolling temperature ℃ 1050-1150 1050-1150 1050-1150 1050-1150 1050-1150 1050-1150 1050-1150 1050-1150 Coaxiality mm ≤ 0.5 ≤ 0.5 ≤ 0.5 ≤ 0.6 ≤ 0.8 ≤ 1 ≤ 1.2 ≤ 1.5
